Hitting the Copper Wall: Dawn of Photonic

Behind every smart assistant, self-driving car, and powerful chatbot, there is a complex hardware network of microchips and processes grinding through billions of calculations every second.

Current technologies, relying on copper for data transport, have now reached their absolute physical limit: electrical resistance generates unmanageable heat and bottlenecks the throughput required by modern architectures. As global demand for computing power continues to grow exponentially, the market is forced to mutate. To go further and meet demand, the industry must move from electrons to photons, making silicon photonics the most viable path to ensure the future of data processing.

In today’s computing landscape, data within a processor is carried by electrons. Copper serves as a microscopic highway for these electrically charged particles. To encode information, the system manipulates voltage and generates billions of microelectric pulses, which travel through miles of copper. As you know, a piece of data is a binary sequence of 0s and 1s

These pulses enable the GPU to perform calculations and transmit commands between different units. However, the operation of copper relies on permanent physical contact. Since an electron is a particle that possesses both mass and charge, it must push its way through the metal’s atoms. This process creates 'friction' known as electrical resistance, which converts part of the energy into heat (the Joule effect).

As chips become more powerful and miniaturized, copper wires get thinner, further increasing this resistance. This phenomenon explains why AI servers generate so much heat: it is the energy lost by electrons colliding with the copper structure before they can even deliver their information.

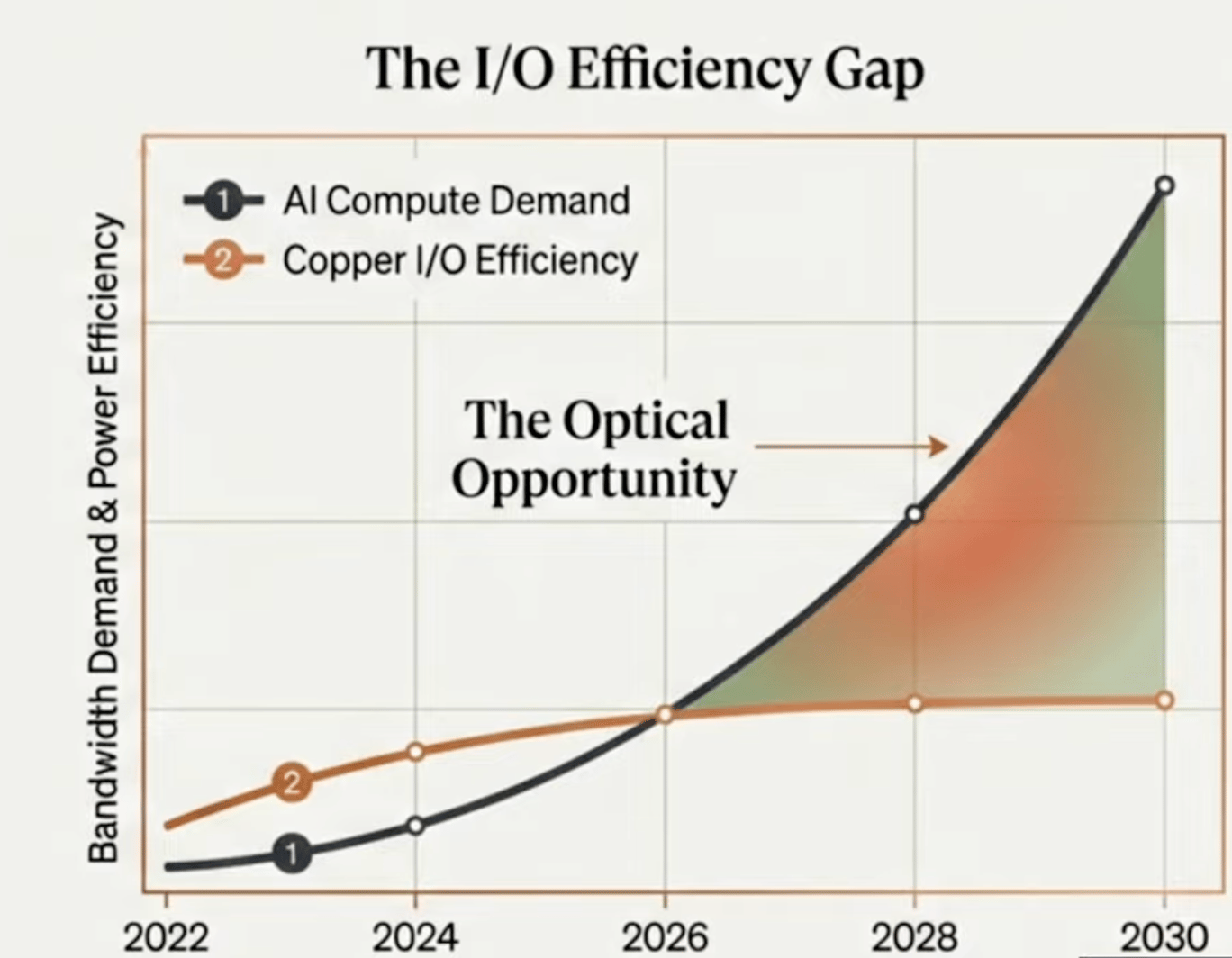

While AI compute demand grows, you can see on the graph below that we are reaching the limits of bandwidth and power efficiency allowed by copper.

An integrated I/O (input-output) system is a comprehensive solution that combines hardware and software components to manage and control the flow of data between various devices in an industrial environment. To put it simply, an efficient I/O system acts as a universal translator, allowing industrial machines to speak the same language as your computer or smartphone. It is the essential foundation for unlocking and leveraging the data they generate

It is no longer enough to have fast GPUs. In fact, the AI bottleneck is no longer compute, but moving data between chips in an efficient way.

NVIDIA’s latest Blackwell architecture, currently the backbone for training the world’s most powerful AI models, relies on a sophisticated mix of exotic metals, such as Tantalum, Cobalt, and Ruthenium: to coat microscopic channels and prevent heat from melting the wires.

But this is a signal for the industry, While these materials allow more electrons to flow through shrinking paths, innovation has reached its physical limits with current tools. To go further, the transition to photonics is necessary and will require the adaptation of established production lines.

Today's hardware innovation is found in the fastest thing known to man, light. The idea here is to use light instead of electricity to shuffle data between GPUs. We start by encoding data into tiny beams of light (photons), then received by optical chips on the other side. At the end, there are tiny photon detectors that grab the light and convert it back into electrical signals. Which are then read by the GPU. Repeat that process millions of times each second and that’s how we channel the data.

The primary benefit is, you can transmit a lot of data in parallel using different wavelength or even different colors of light simultaneously.

Tech-friendly Analogy: Instead of writing with a single black pen (electricity), we now use millions of colored markers all at once to transmit data much faster, without them ever getting tangled up.

Consider that the challenge of computer science is to remodel intelligence within a machine (nothing less). The approach through electricity in 0s and 1s is by default very linear and works by pattern learning. However, the very basis of our intelligence is non-linearity. We are trying as best as we can to simulate it using complex mathematical functions, but it remains insufficient. Photonics allows us to compute natively non-linear functions at the physical layer.

If photonics is so great, why isn't it already used globally ?

Successfully operating a photonic chip in the laboratory is one thing, but building factories capable of producing millions of them per month is quite another. The timeline to adoption is the 2028 to 2029 window. the main bottleneck is not just technology readiness: it is the manufacturing ramp-up. While photons don't generate heat through friction, precision optical components require extreme thermal stability. Active cooling solutions (like those used by Lightmatter) might offset some GreenOps gains if not carefully optimized. To learn more about Green ops, I recommend reading my article on the subject.

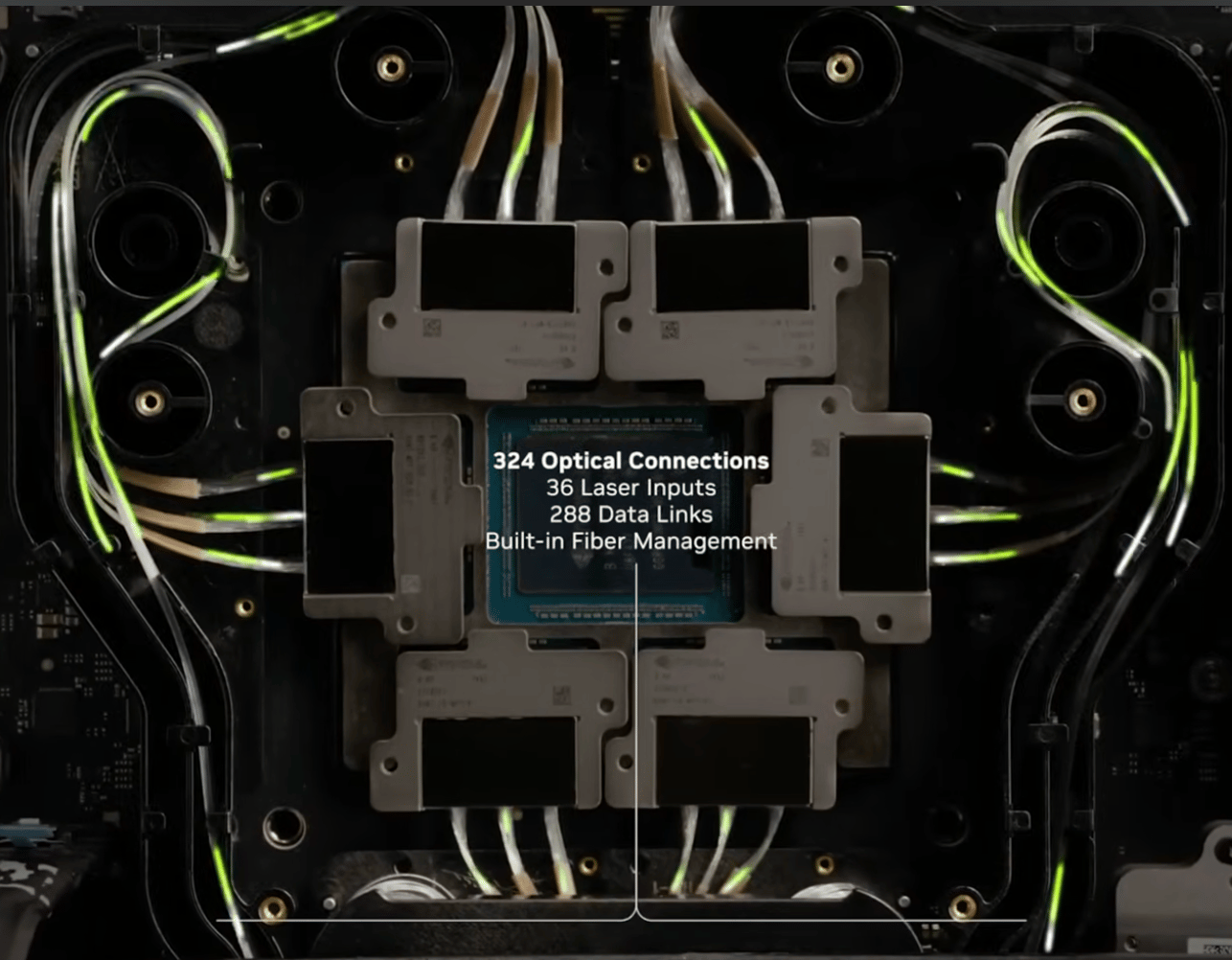

For instance, Industry leaders are already validating this path: TSMC known as the largest microchip company combined with NVIDIA’s photonic research aim to turn this theoretical advantage into hardware reality within the next few design cycles.

LiFi (Light Fidelity) leverages the fundamental principles of photonics to transmit data wirelessly. In technical terms, this field is known as Wireless Optical Communication (WOC). Unlike traditional Wi-Fi, which relies on radio frequency (RF) waves, LiFi uses the visible, infrared, or ultraviolet light spectrum to carry information through the air. Here are various fields where LiFi is already being used and is relevant, unlike Wi-Fi:

Innovation thrives where bottlenecks exist, and the current energy crisis in data processing has made the shift to light a market-driven necessity. Slowly but surely photonics is rapidly establishing itself as the standard of tomorrow, proving once again that necessity is the true mother of invention.
